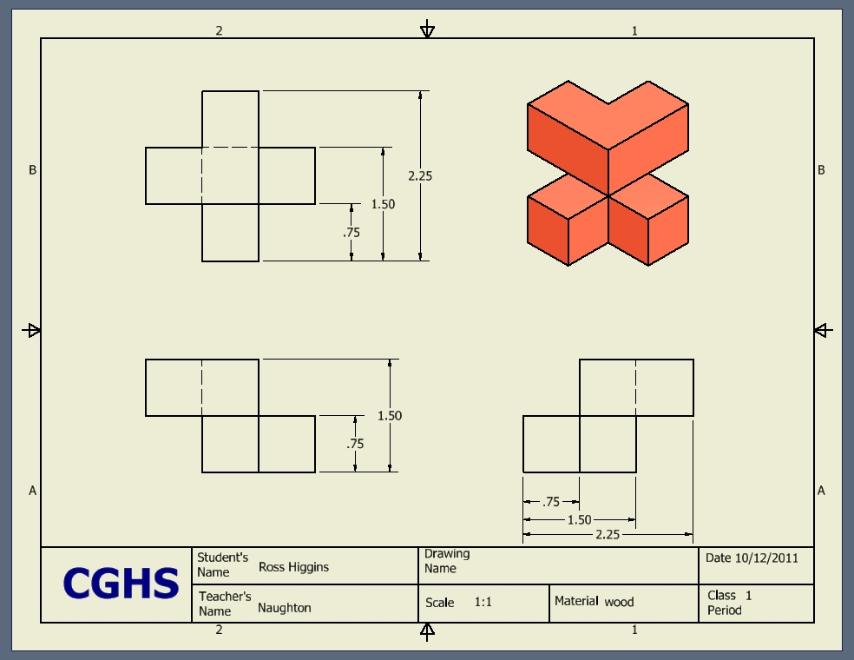

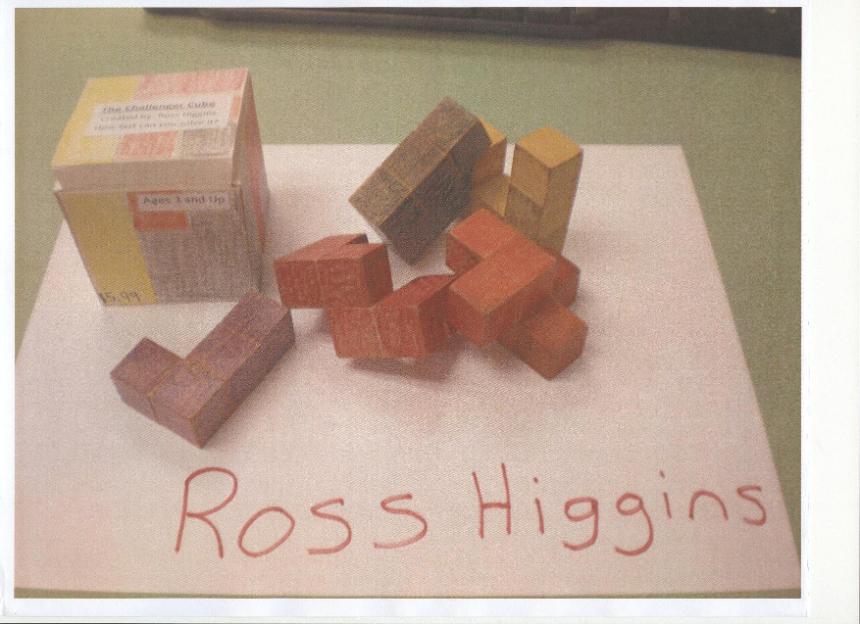

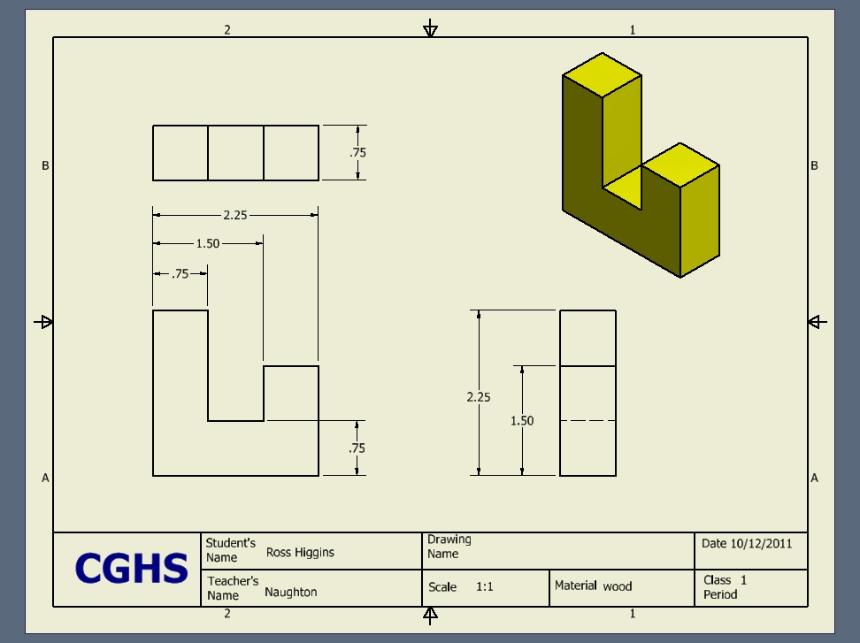

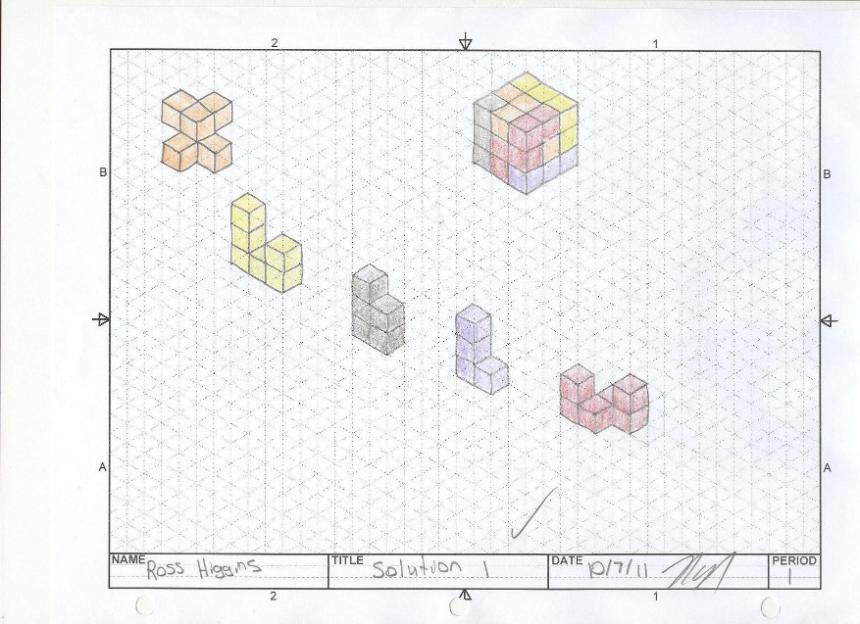

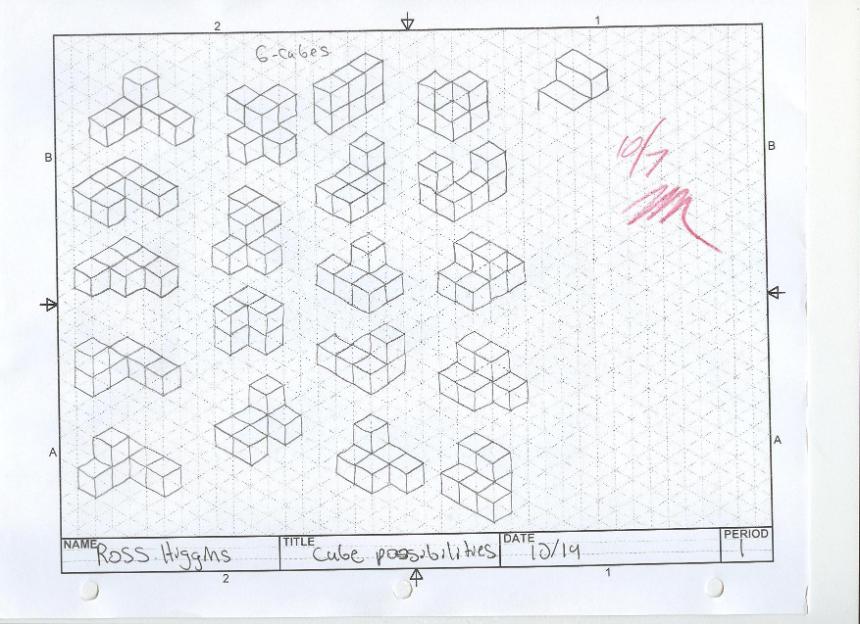

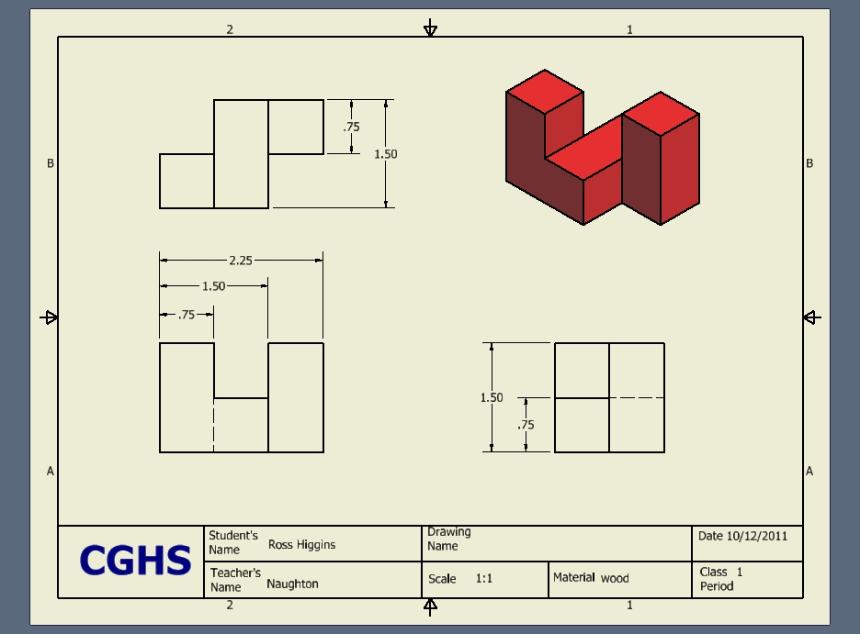

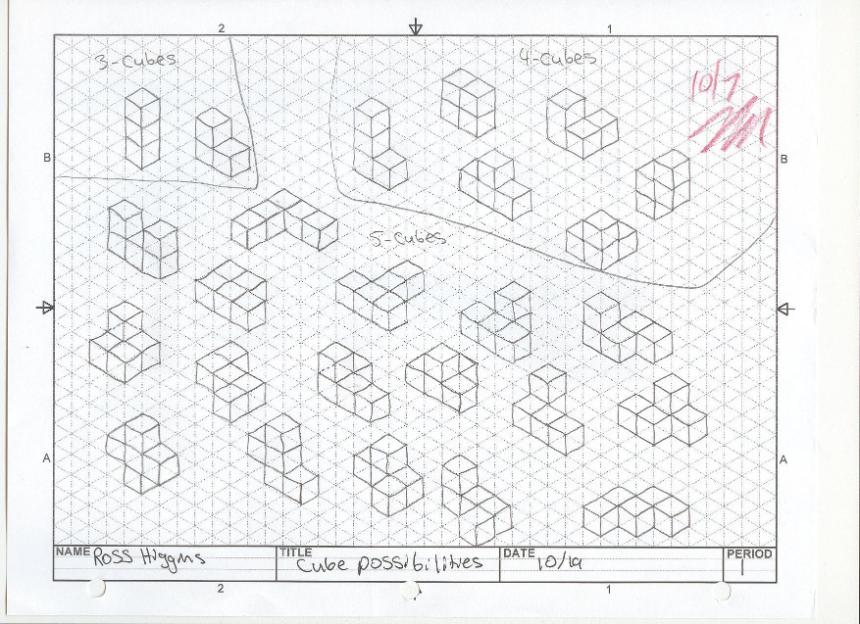

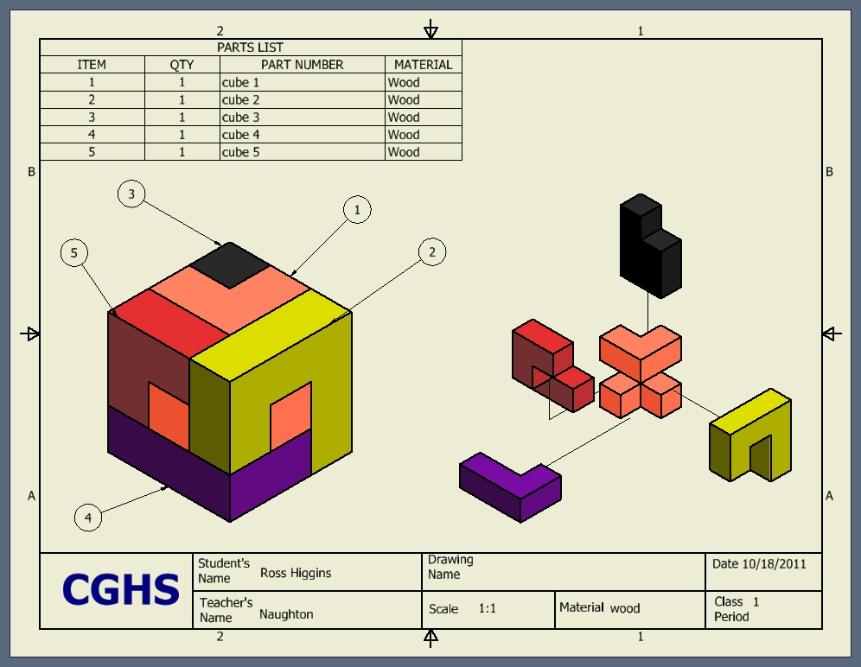

This project was about creating a solution to a problem that a wood cutting company had. They had all of these 3/4x3/4x3/4 cube scraps and wanted to make a puzzle cube out of them. In this activity I sketched, designed, moldeled, and made a puzzle cube. This Project took us through all of the steps of the design process because we had to create it ourselves in inventor and with the real materials and then show the working dimensions so it could be manufactured.
|
Puzzle Design Challenge Brief |
Client: Fine Office Furniture, Inc.
Target Consumer: Ages 3+
Designer: __Ross Higgins______________________________
Problem Statement:
A local office furniture manufacturing company throws away tens of thousands of scrap ¾” hardwood cubes that result from its furniture construction processes. The material is expensive, and the scrap represents a sizeable loss of profit.
Design Statement:
Fine Office Furniture, Inc. would like to return value to its waste product by using it as the raw material for desktop novelty items that will be sold on the showroom floor. Design, build, test, document, and present a three-dimensional puzzle system that is made from the scrap hardwood cubes. The puzzle system must provide an appropriate degree of challenge to a person who is three years of age or older.
Constraints:
1. The puzzle must be fabricated from 27, ¾” hardwood cubes.
2. The puzzle system must contain exactly five puzzle pieces.
3. Each individual puzzle piece must consist of at least three, but no more than six hardwood cubes that are permanently attached to each other.
4. No two puzzle pieces can be the same.
5. The five puzzle pieces must assemble to form a 2 ¼” cube.
6. Some puzzle parts should interlock.
